tinyML device monitors packages for damage while in transit

- Werbung -
Reading Time: 2 minutes

Arduino TeamSeptember 10th, 2022

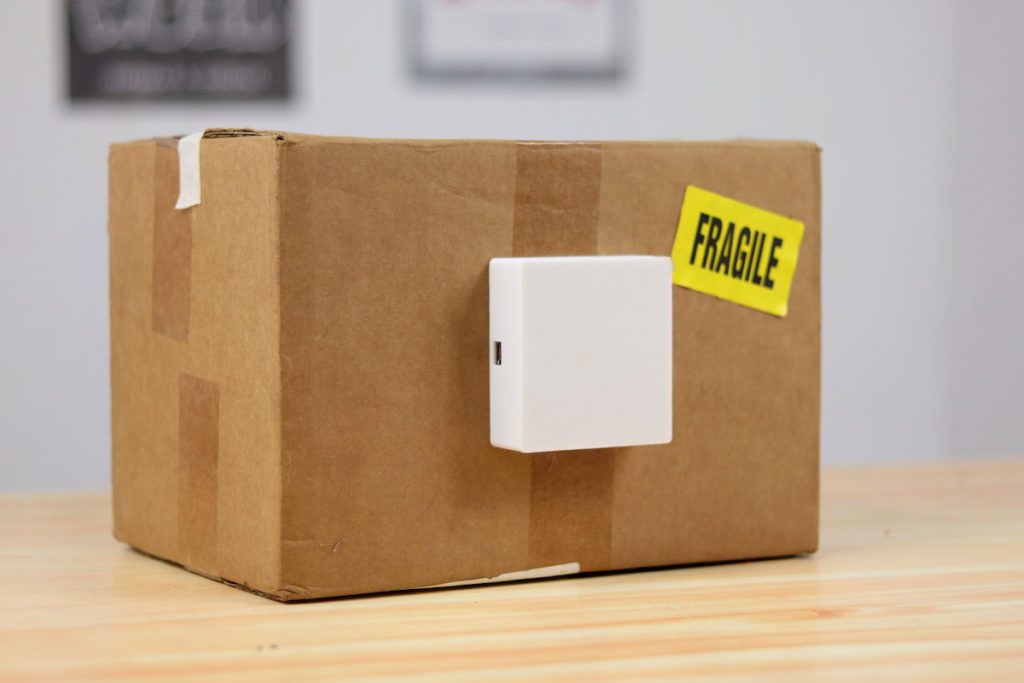

Although the advent of widespread online shopping has been a great convenience, it has also led to a sharp increase in the number of returned items. This can be blamed on a number of factors, but a large contributor to this issue is damage in shipping. Shebin Jose Jacob’s solution involves building a small tracker that accompanies the package throughout its journey and sends alerts when mishandling is detected.

- Werbung -
- Werbung -

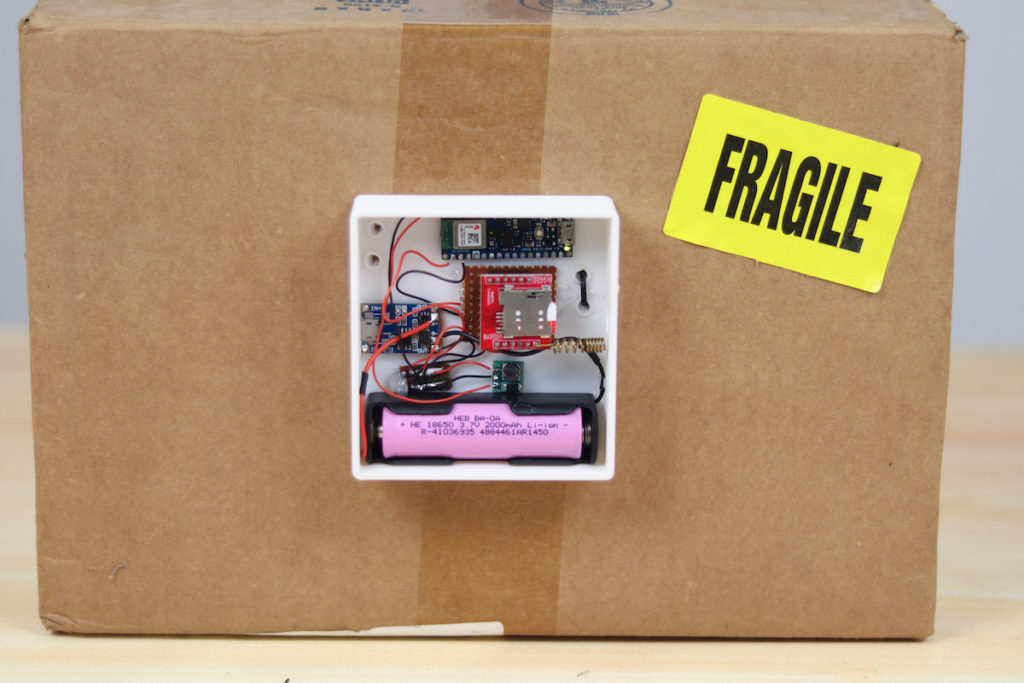

Jacob started by creating a new Edge Impulse project and collecting around 30 minutes of motion samples from an Arduino Nano 33 BLE Sense’s onboard three-axis accelerometer. Each sample was sorted into one of five categories that range from no motion all the way to a hard fall or vigorous shaking. Features were then generated and used to train a Keras model, which yielded an accuracy of 91.3% in testing.

– Werbung –
'; var unpack = true; if(viewport=tabletStart && viewport=landscapeStart && viewport=tabletStart && viewport=tabletEnd){ if ($wrapper.hasClass('.adace-hide-on-desktop')){ $wrapper.remove(); } } if(unpack) { $self.replaceWith(decodeURIComponent(content)); } } if($wrapper.css('visibility') === 'visible' ) { adace_load_65b63155336f2(); } else { //fire when visible. var refreshIntervalId = setInterval(function(){ if($wrapper.css('visibility') === 'visible' ) { adace_load_65b63155336f2(); clearInterval(refreshIntervalId); } }, 999); }

})(jQuery);

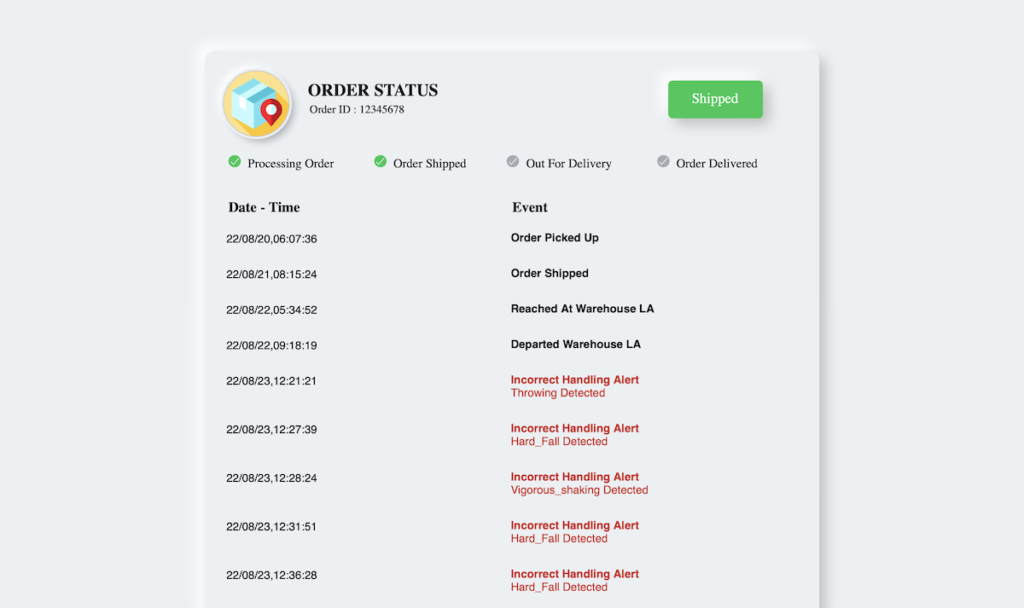

To communicate with the outside world, Jacob added a GSM module that allows the Nano 33 BLE Sense to send alerts over a 3G network to an awaiting Firebase endpoint. When the database updates, new data is propagated to a user-face webpage that shows the current status of the package along with any important events.

More details can be found here in Jacob’s project write-up.

- Werbung -

Hier klicken, um den Inhalt von Vimeo anzuzeigen.
Erfahre mehr in der Datenschutzerklärung von Vimeo.

Website: LINK
